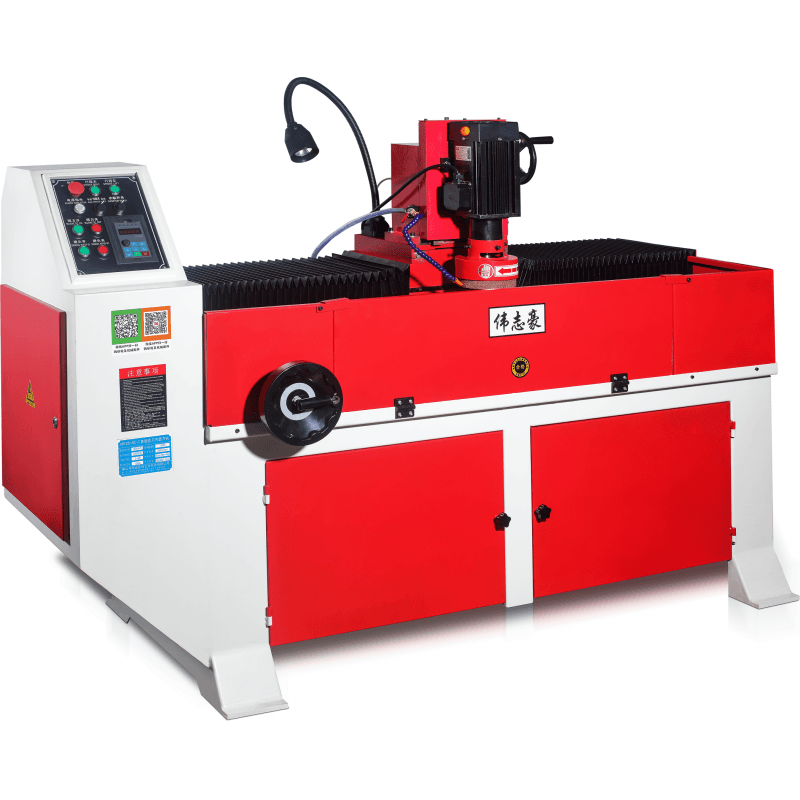

WEIZHIHAO MF2510C Chipper Blade Sharpening Machine
Brief Description
MF2510C Push-button automatic straight knife grinder
Paired with a mechanical tool holder or electromagnetic suction cup fixing device, it can firmly clamp tools of different lengths, even for 1000mm long blade tools, it can be stably fixed to avoid displacement affecting accuracy during grinding.
The equipment is also equipped with a cooling system, which can effectively control the grinding temperature and prevent blade annealing.
The operation adopts a manual feed of the grinding wheel or a variable frequency speed control automatic cutting design, and the cutting speed can be adjusted as needed, balancing the convenience of beginners and the needs of professional processing.
MF2510c linear sharpening machine is suitable for various types of straight knife processing needs below 1000mm.
Equipped with a powerful electromagnetic suction cup to ensure stable and reliable tool positioning, coupled with a flexible angle adjuster, it can accurately adapt to different grinding angle requirements.
Adopting frequency conversion regulation technology, the speed can be freely adjusted according to the tool material and grinding requirements

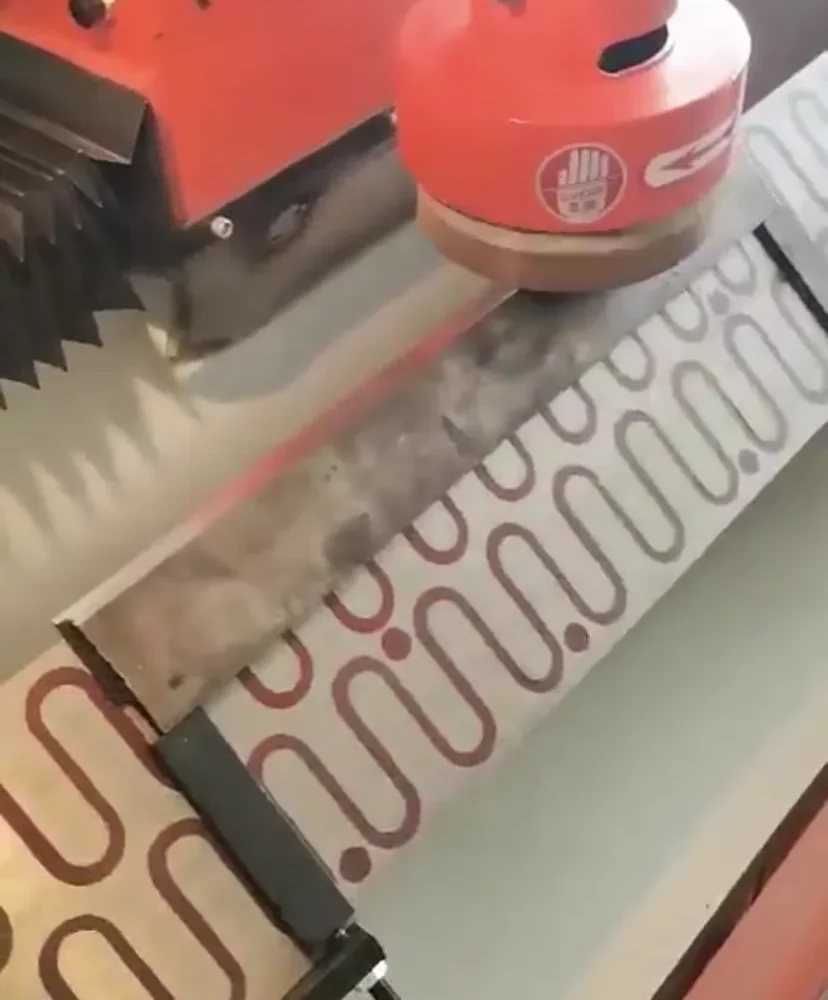

This machine is specially designed for sharpening straight knives on both the flat surface and the back edge. Sharpening is performed automatically with the use
The machine is recommended for furniture and joinery manufacturers that utilize planer, jointer and four-sided moulder machines.
TYPES OF SHARPENABLE TOOLS:
Machine Video：
Specifications
| Item | Value |
|---|---|
| Model | MF2510C |
| Maximum Processing Length, mm | 1000 |
| Maximum Knife Width, mm | 160 |
| Minimum Material Removal per Pass, mm | 0.002 |
| Maximum Material Removal per Pass, mm | 0.01 |
| Grinding Wheel Size, mm | 32×50×150 |
| Grinding Wheel Rotation Speed, rpm | 2830 |
| Coolant Pump Power, W | 40 |
| Feed Motor Power, W | 120 |
| Main Motor Power, kW | 7.5 |
| Overall Dimensions, mm | 3350×1130×1850 |
Structural Features：
Translation
CAST MACHINE BED
chipper blade sharpening machine The machine is built on the basis of a cast machine bed. Only a cast machine bed can provide the required rigidity, vibration resistance and machine reliability, thus ensuring high-precision tool sharpening.
Terminology Notes
Translation

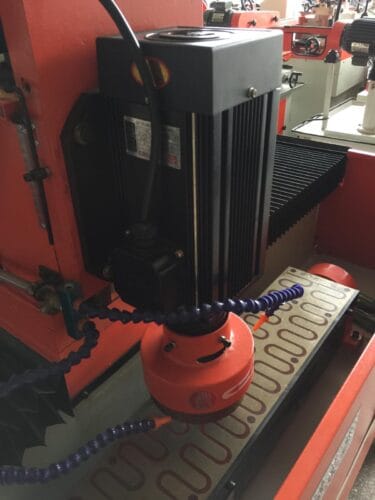

CARRIAGE WITH SHARPENING UNIT

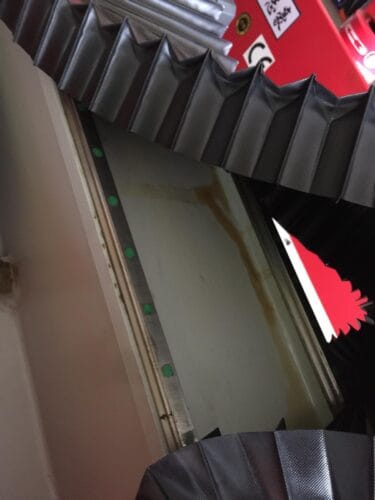

The carriage with sharpening unit moves automatically by means of an electric drive. The machine adopts HIWIN linear guides (Taiwan). This ensures precise movement and smooth travel of the sharpening unit during the sharpening process.

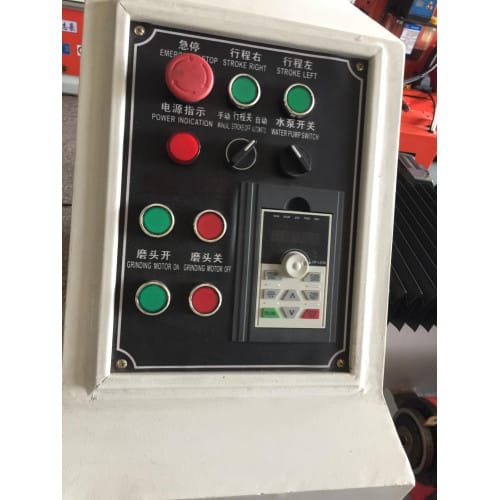

TOUCH CONTROL PANEL
The touch control panel ensures ease of operation, and allows setting the material removal per pass and adjusting the carriage travel speed.

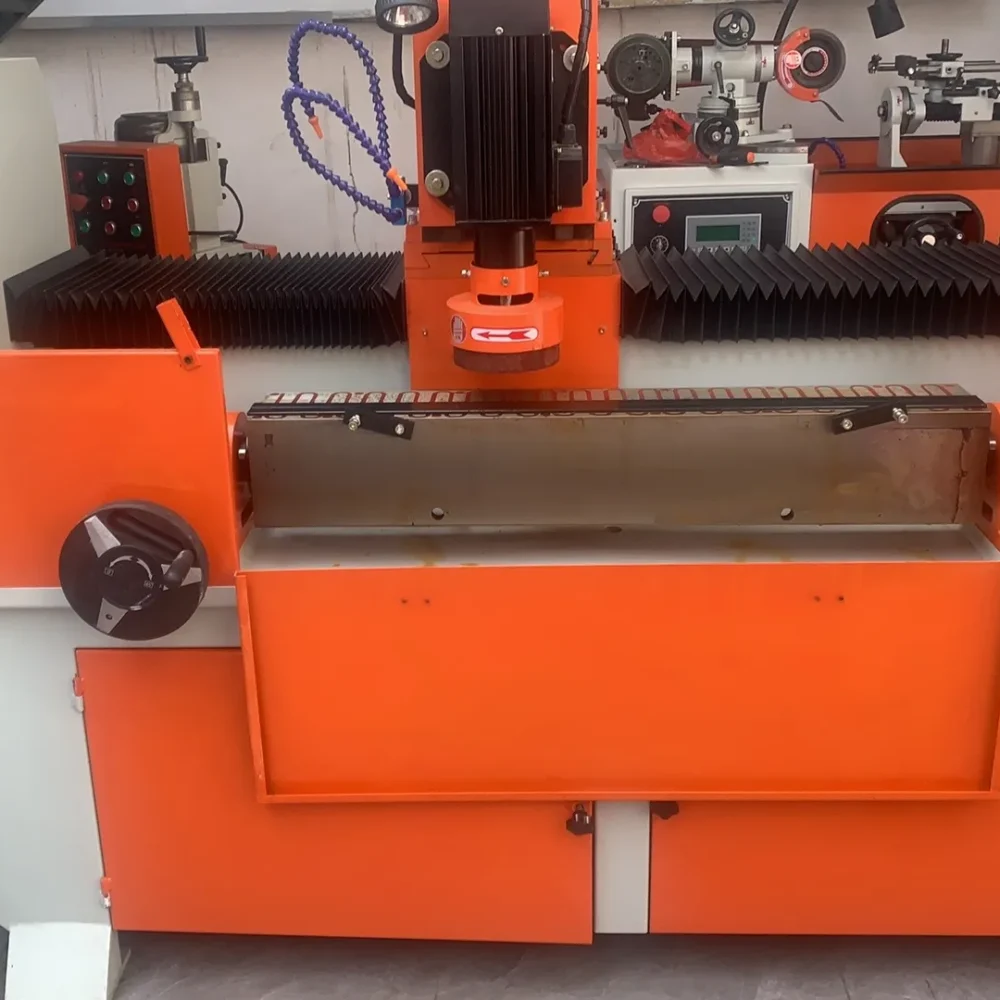

ELECTROMAGNETIC PLATE
The electromagnetic plate is made of high-quality steel, enabling the clamping of flat knives made of HSS and DS steel.
AUTOMATIC LUBRICATION SYSTEM
Centralized lubrication system for machine components. It enables lubricant to be delivered to all linear guides in the shortest possible time. The worktable is lubricated by an independent pump.
